To use the HDMI out simply make sure all devices are turned on and you have the image you want to output on the source panel. Connect an HDMI from the source IFPs HDMI Out port to an HDMI input on the 2nd display.
If you do not see the image pop up on the second screen try the following.
(5 Series Gen 2 Only)

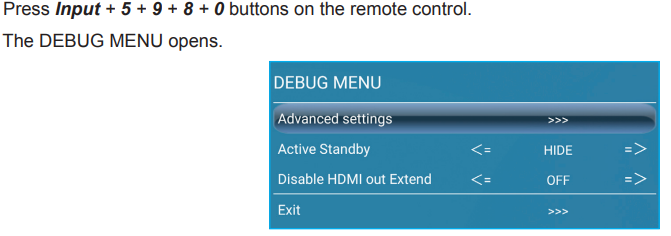

On IFP go to Debug menu-Input 5980 Make sure Disable HDMI out Extend is set to OFF. Exit the menu then disconnect your HDMI out and reconnect it.

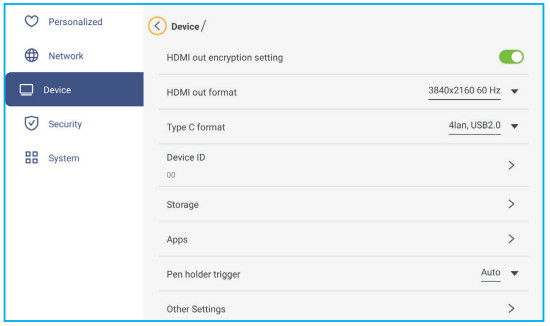

Go to your Device Settings menu and toggle the HDMI out encryption setting. If your connected monitor does not support HDCP you will want to leave this off.
In the same Device settings menu ensure your HDMI out format matches what your external monitor is capable of.
(5 Series Gen 1 Only)

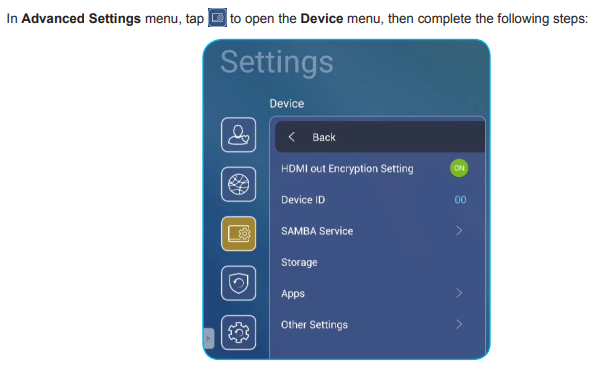

Go to your Device Settings menu and toggle the HDMI out encryption setting. If your connected monitor does not support HDCP you will want to leave this off.
TAGS: 5652RK, 5752RK, 5862RK, 5651RK, 5751RK, 5861RK
